Comparing Performance of ADBC and JDBC in Python for Arrow Flight SQL
Philip Moore, Kae Suarez
Python is frequently used as the language to organize compute and data while connected to a powerful database backend to handle execution — such as one that uses Arrow Flight SQL. Until recently, to connect to Flight SQL from Python, you needed either the Arrow JDBC driver or to develop your own bindings. Given the engineer hours and expertise needed to write these bindings, JDBC was the only reasonable way to access Flight SQL. However, to use JDBC, users needed Java in their stack, which required the shuffling of data between languages.
The recent release of the Arrow Database Connectivity (ADBC) driver enables you to stay in Python as you connect to your database, cutting down on the complexity of your stack and enhancing performance by not requiring communication between languages.
Running a Flight SQL server for use with JDBC or ADBC has never been easier, as we demonstrated in a previous blog post. Using the code from there to set up the server, we’ve set up a benchmark to compare the use of JDBC and ADBC from Python, connecting to Flight SQL.
We have provided the code and setup for the benchmarks on GitHub here. You can clone the repo and run them on your own system by following the steps in the README.
This benchmark is focused on the speed of data collection and transmission of data from an underlying database to Python. The reasoning behind this choice is that performance variance between connectors is most likely to arise in workloads that rely on high bandwidth, and complexity beyond this is unnecessary. We’ll use three setups overall:
- JDBC: Simple setup with Py4J
- JDBC: Optimized setup with built jar
- ADBC: Simple setup with standard Python package
For our test, we will use a 1 GB TPC-H dataset, specifically the “lineitem” table which represents customer order line item facts as part of a snowflake schema.
For TPC-H Scale Factor 1 - the “lineitem” table has 6,001,215 rows of data, representing about 720MB of CSV data, or 258MB of Parquet data.
For all of the benchmark tests, we run the same SQL statement from Python in 10 loops and calculate the average run time. The statement fetches ALL rows from the “lineitem” table - here it is:
SELECT l_orderkey , l_partkey , l_suppkey , l_linenumber , l_quantity , CAST (l_extendedprice AS float) AS l_extendedprice , CAST (l_discount AS float) AS l_discount , CAST (l_tax AS float) AS l_tax , l_returnflag , l_linestatus , l_shipdate , l_commitdate , l_receiptdate , l_shipinstruct , l_shipmode , l_comment FROM lineitem
Flight SQL server
For the provided results, the Flight SQL server will be running locally in Docker on a laptop (2021 Apple MacBook Pro with M1 Pro CPU and 32GB of RAM). It is using a DuckDB version 0.7.1 back-end, TLS for encryption of data transfer to/from the client, and Apache Arrow 11.0.0. See this repo for more info on the Flight SQL server.
For the client, we’ll test both the Arrow JDBC and ADBC drivers using Python 3.11 on the same laptop as the Flight SQL server.
JDBC requires Java. We’re using Python libraries: jpype and py4j, which allow you to use the JVM from Python.
JDBC driver benchmark tests
For the JDBC driver, we are running two benchmark tests:
1: benchmark_jdbc_py4j.py: Basic Py4j with the regular Arrow JDBC Driver version 11.0.0 - where we query the
lineitem table, and use the default JDBC behavior of deserializing data from Arrow format to JDBC’s row-based format. Note: our test may not represent the best setup for Py4J and JDBC - if you find a better way to run this scenario - please let us know via a Pull Request!
2: benchmark_jdbc_super_jar.py: A performance-enhanced setup that requires we build a specialized jar that combines the Arrow JDBC driver with Arrow Java libraries, thus cutting out most costs from inter-language communication. This special setup was inspired by this article by Uwe Korn. The “super-jar” was built one time using this script. For ease of use, we just put the jar artifact directly in the repo so that you shouldn’t have to build it, but feel free to do so.
Using the new Python ADBC driver for Flight SQL is quite simple, just install it with pip (as documented in the README.md). We run script: benchmark_adbc.py for the ADBC benchmark.

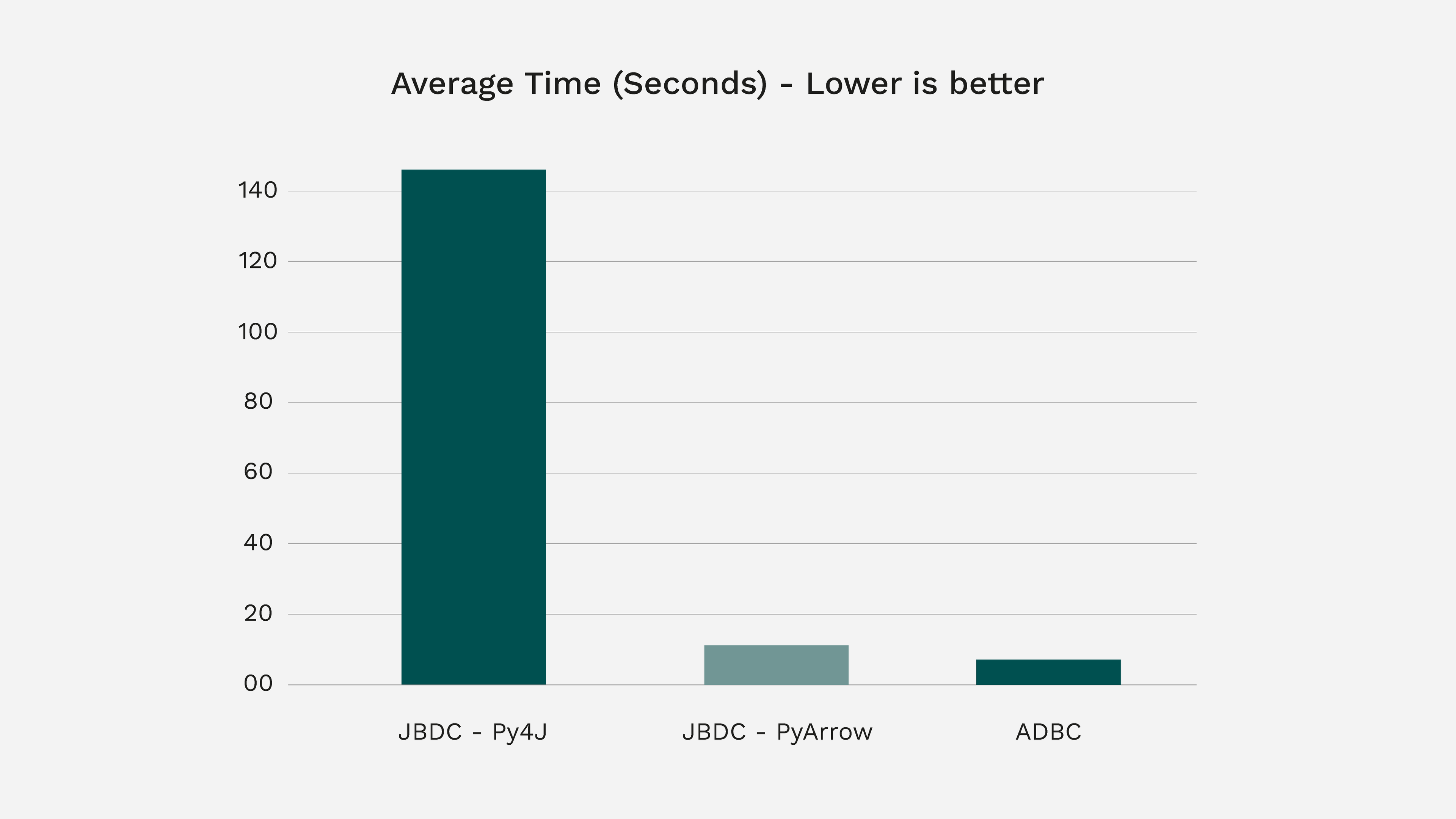

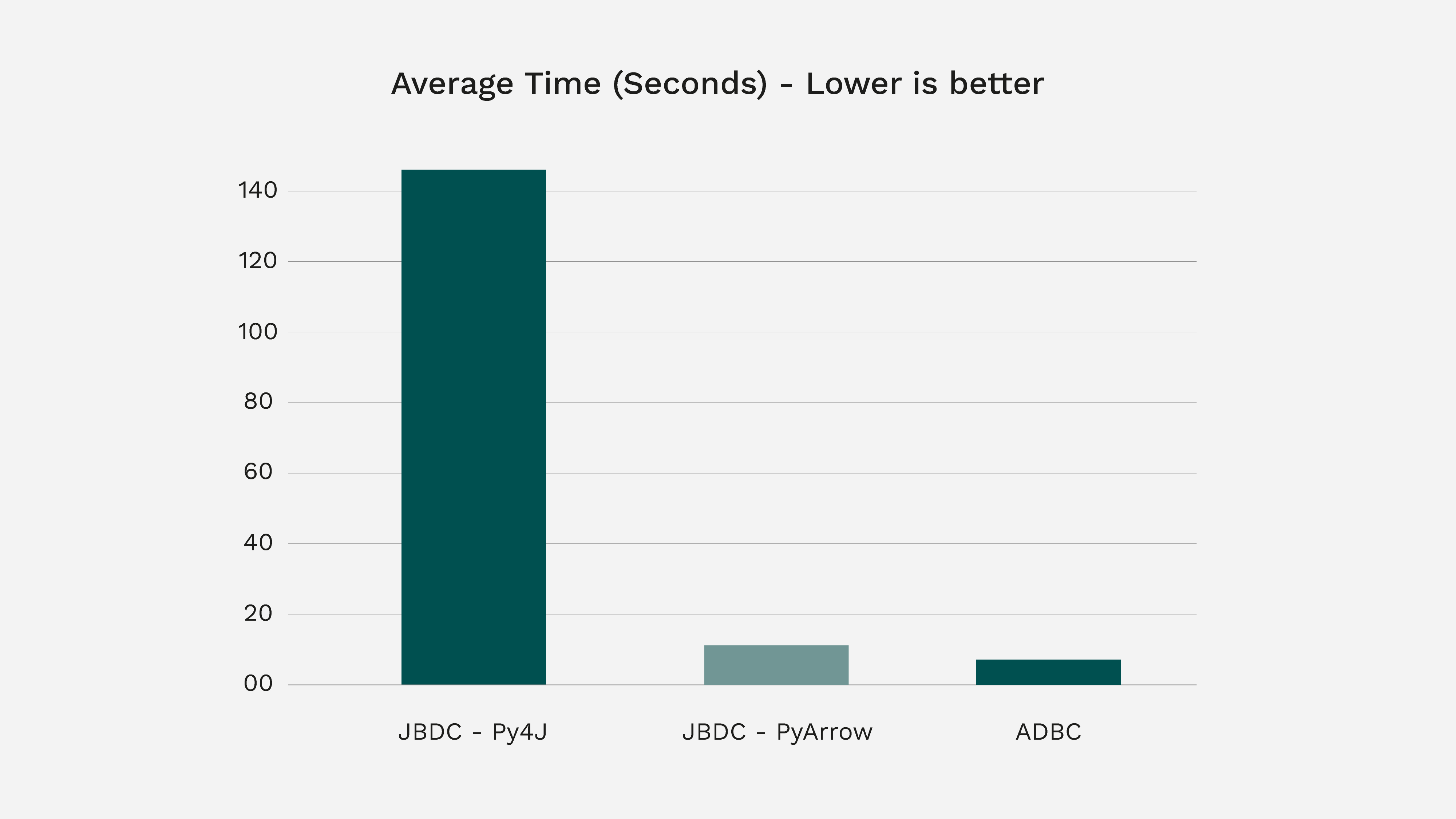

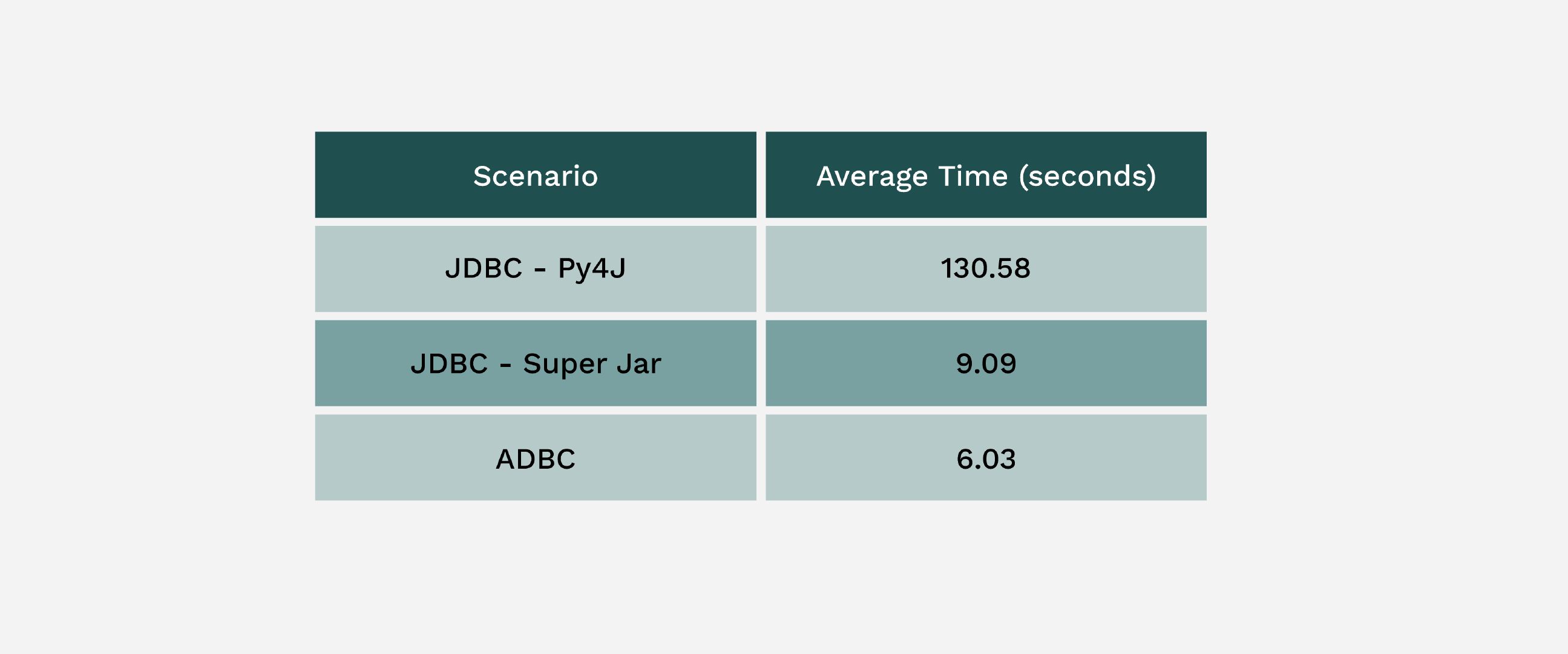

After running the tests, we found that the new ADBC driver for Flight SQL performs best. Here are the performance numbers:
As you can see, ADBC performs over 33% faster than a very optimized JDBC setup, and over 21x faster than the default JDBC configuration! Further, the Python code complexity is much less for ADBC and works out of the box with minimal setup.

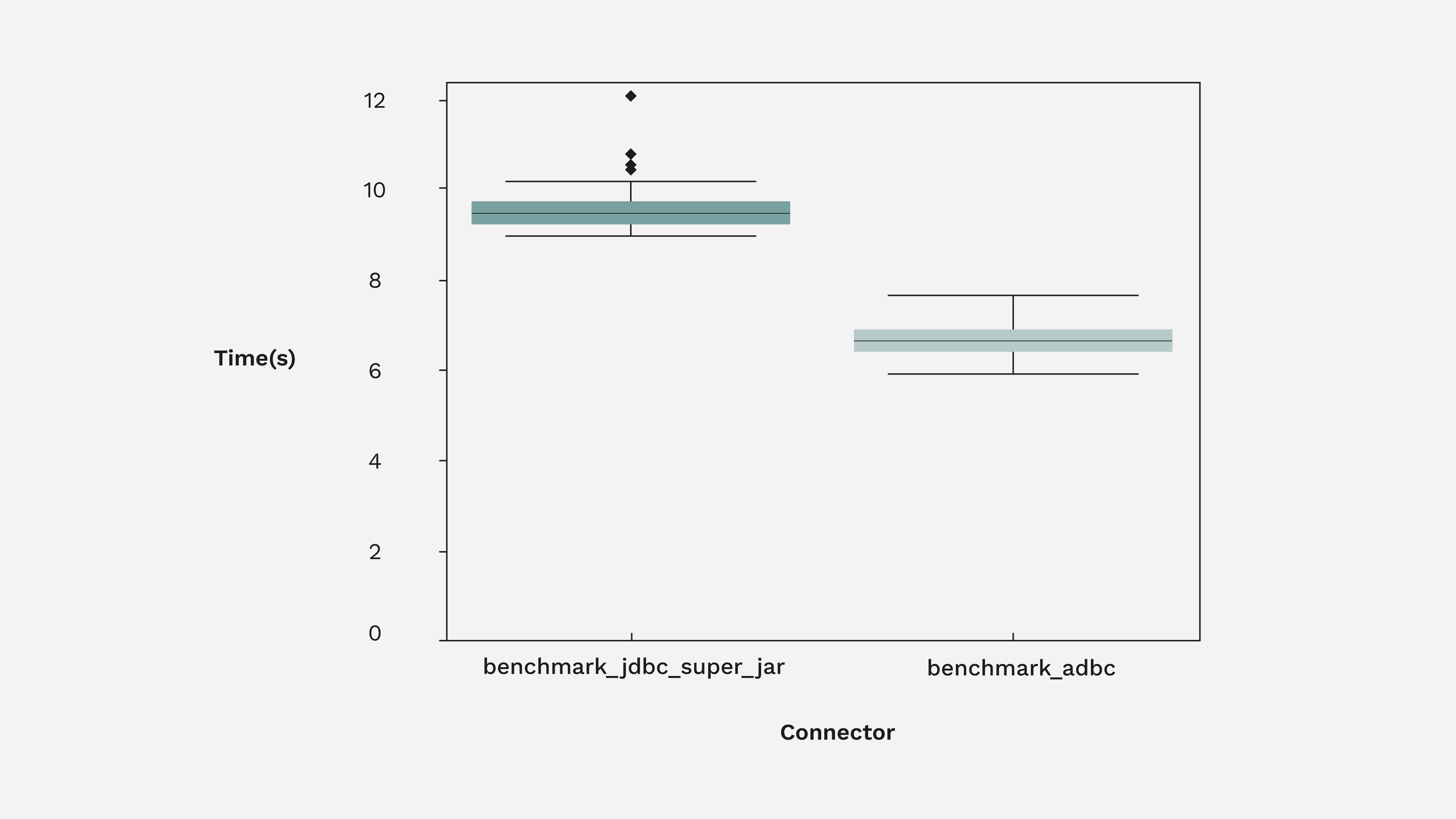

Here is the distribution of timings:
ADBC is simpler to use from Python, and performs noticeably better than JDBC. Pulling in the entirety of Java as a dependency demands engineer hours and performance costs. These vital resources can be better spent gathering important insights. Python’s usability and rich ecosystem enable a variety of workflows, and the ADBC driver enables you to use it with your databases without sacrificing performance or usability.
